Sunday Monday Tuesday Wednesday Thursday Friday Saturday

30

JD303

31

JD304
Halloween (boo!)

1

JD305

2

JD306
Site Visit (SpB): Details , Photos (39)

Span cylinder at 1220 psi, N2 at 400 psi

new gas cylinders moved from snowshed to C-1 trailer: cc252234 (span), eb0033789 (n2), cc428961 (n2)

old gas cylinders moved from site/trailer to snowshed: cc235665 (span), cc704247 (n2, leaked, cylinder problem)

at 11:50 MST, downloaded PolaRx5 GPS "A" (sn 3062189) data files

at 13:01 MST, downloaded PolaRx5 GPS "B" (sn 3227662) data files

swapped SD card from GPSCAM

updated both gpsA and gpsB so that SBF data is saved every 60 sec (rather than every 5 sec)

from 14:00-14:14 MST, swapped LI-7200 inlet

removed the heater wires for CNR1 to the RAD cr23x logger (in DIFF ch12)

Enterprise SUV rental

Sunny, farily calm

3

JD307
Snow

4

JD308

5

JD309
In Lab/Cristol (SpB): Details

the battery of the UPS in the lab died overnight (turned it off)

modified timing of the two CR23s in the lab (disconnected SDI-12 wire)

CR23x w/ SN 0000; running lab_24.csi (acting as sdi-12 sensor; connected to CNR4 sensor)

CR23x w/ SN 2293; running lab_24b.csi (acting as sdi-12 recorder; using modified rad_08.csi from RAD/CNR CR23X on tower)

At the US-NR1 Site:
between 10-15 MST, 21.5m LI-7500A (op2) and LI-7200 rebooted (likely a short power outages?)

6

JD310

7

JD311
in AM: talked to Gordon; updated the XML files for the titan2 DSM and niwot.xml on urquell (fixed a configuration issue w/ the spare titan)

8

JD312
In Lab/Cristol (SpB): Details

continued attempts to get two CR23s in the lab working with sdi-12

CR23x w/ SN 0000; running lab_25.csi (acting as sdi-12 sensor; connected to CNR4 sensor)

CR23x w/ SN 2293; running lab_25b.csi (acting as sdi-12 recorder)

lab_25.csi has all extra calculations removed

This setup is now working in the lab (sample photos):

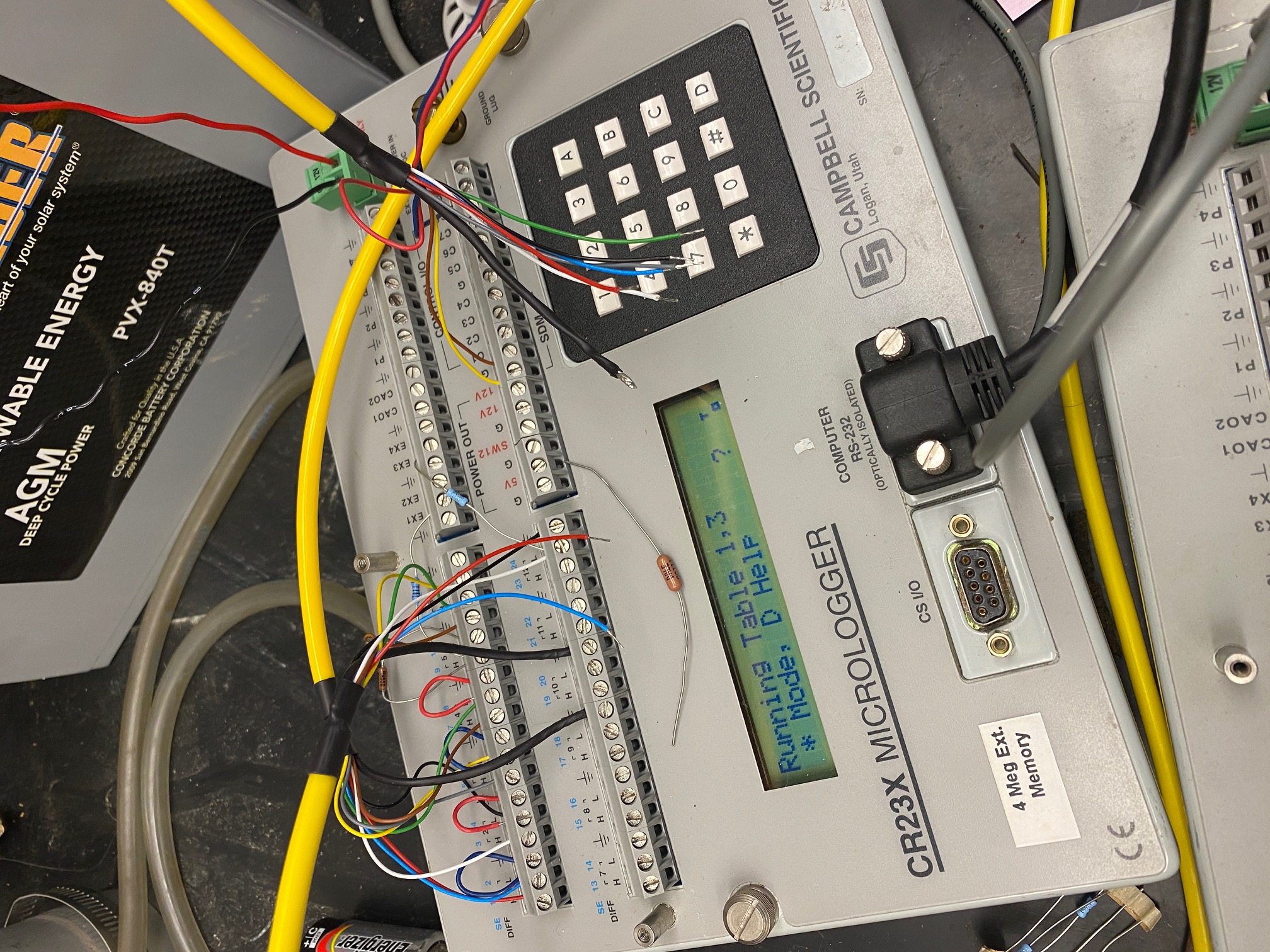

cr23xA sn0000: photo1

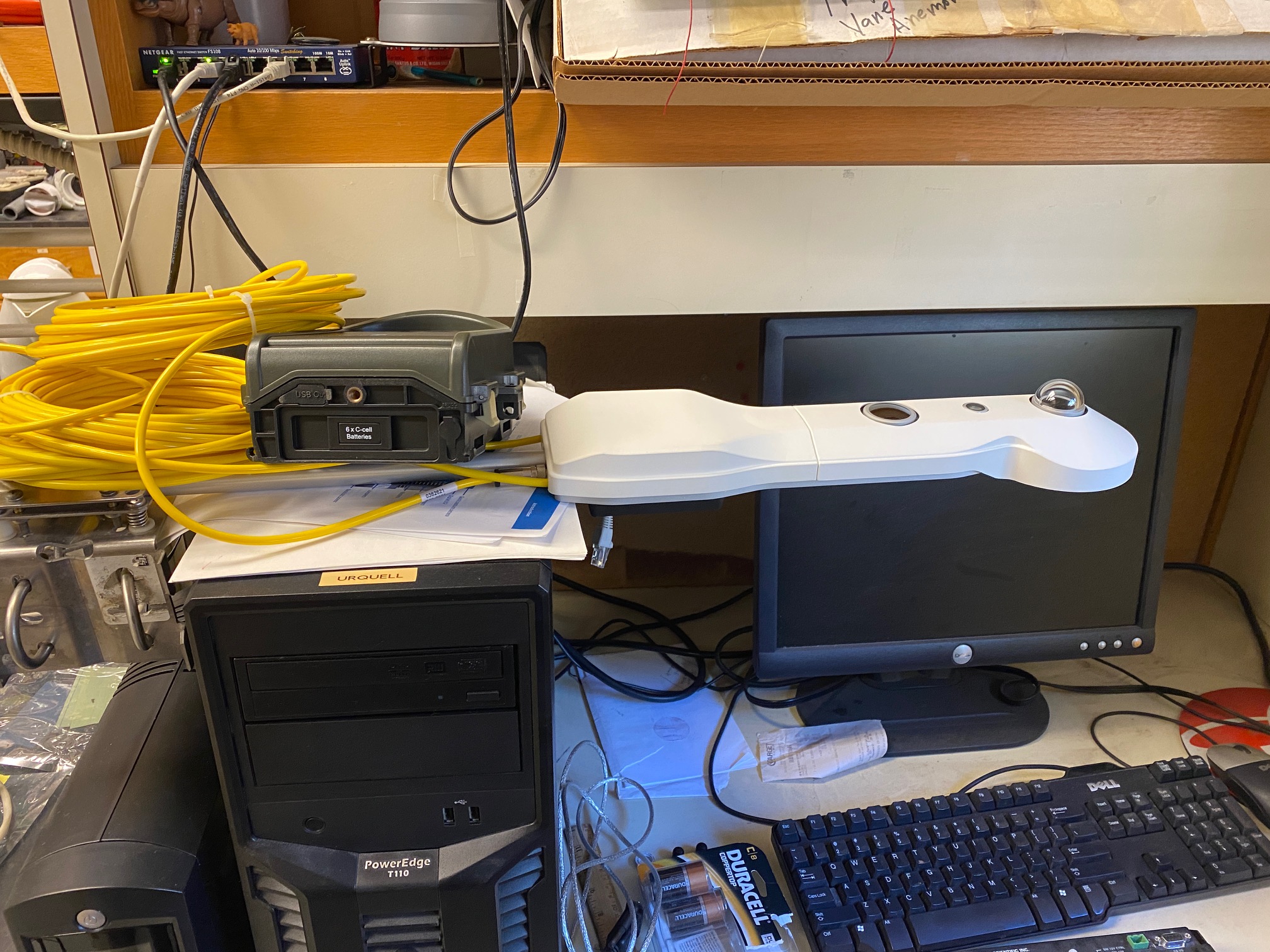

CNR4 (in lab): photo2

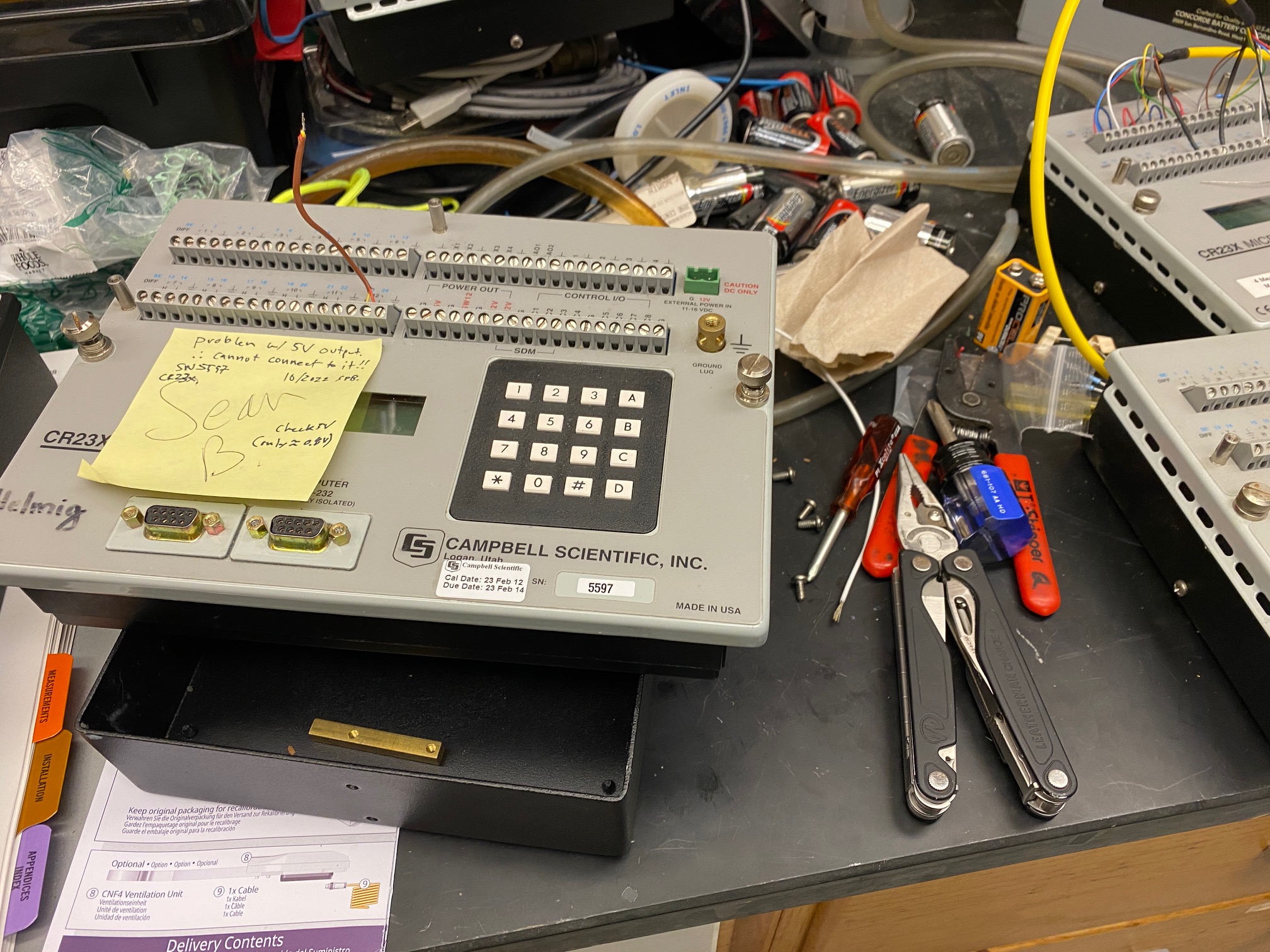

Broken cr23x sn5597: photo3

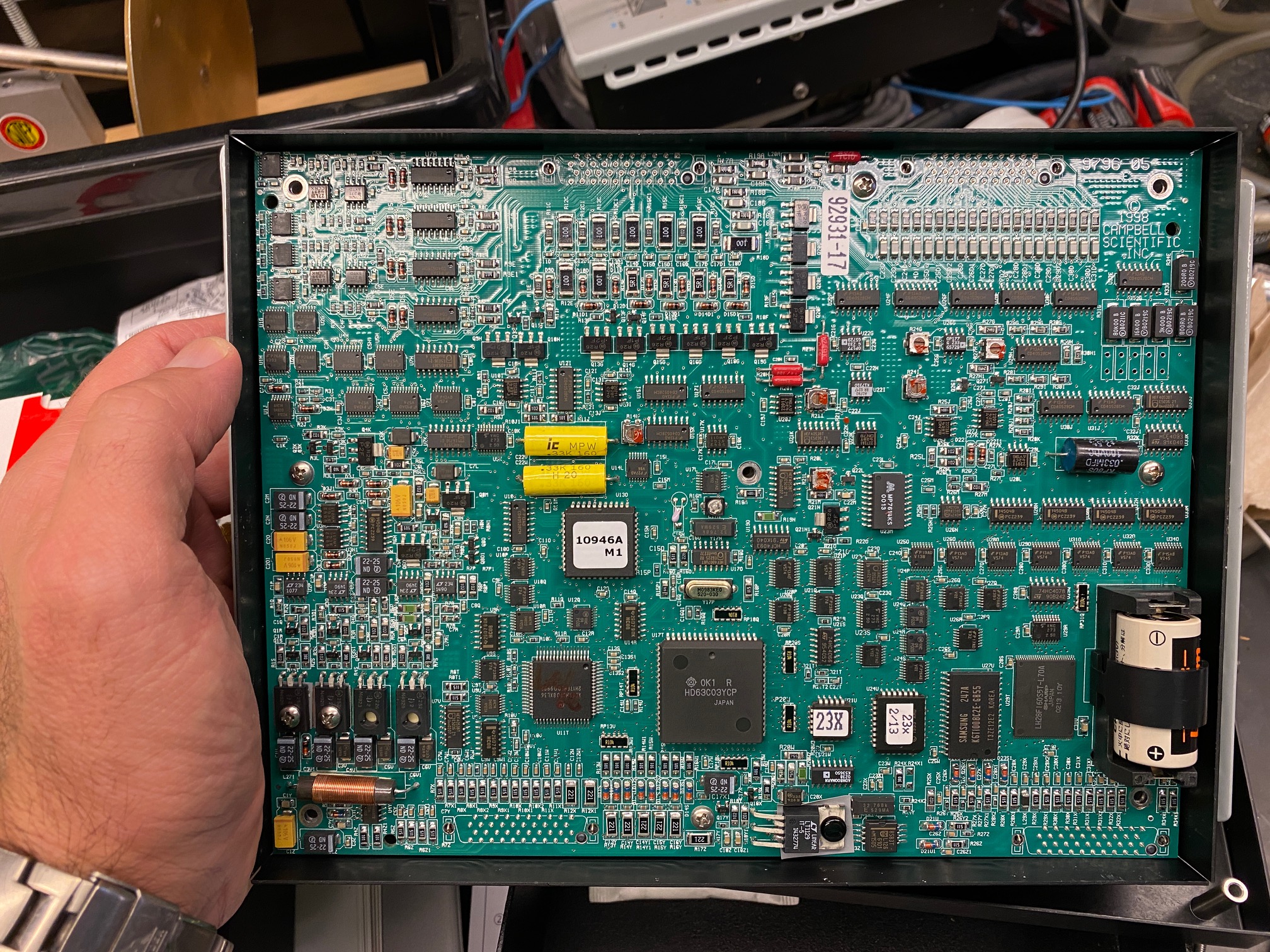

Broken cr23x sn5597 (main board) : photo4

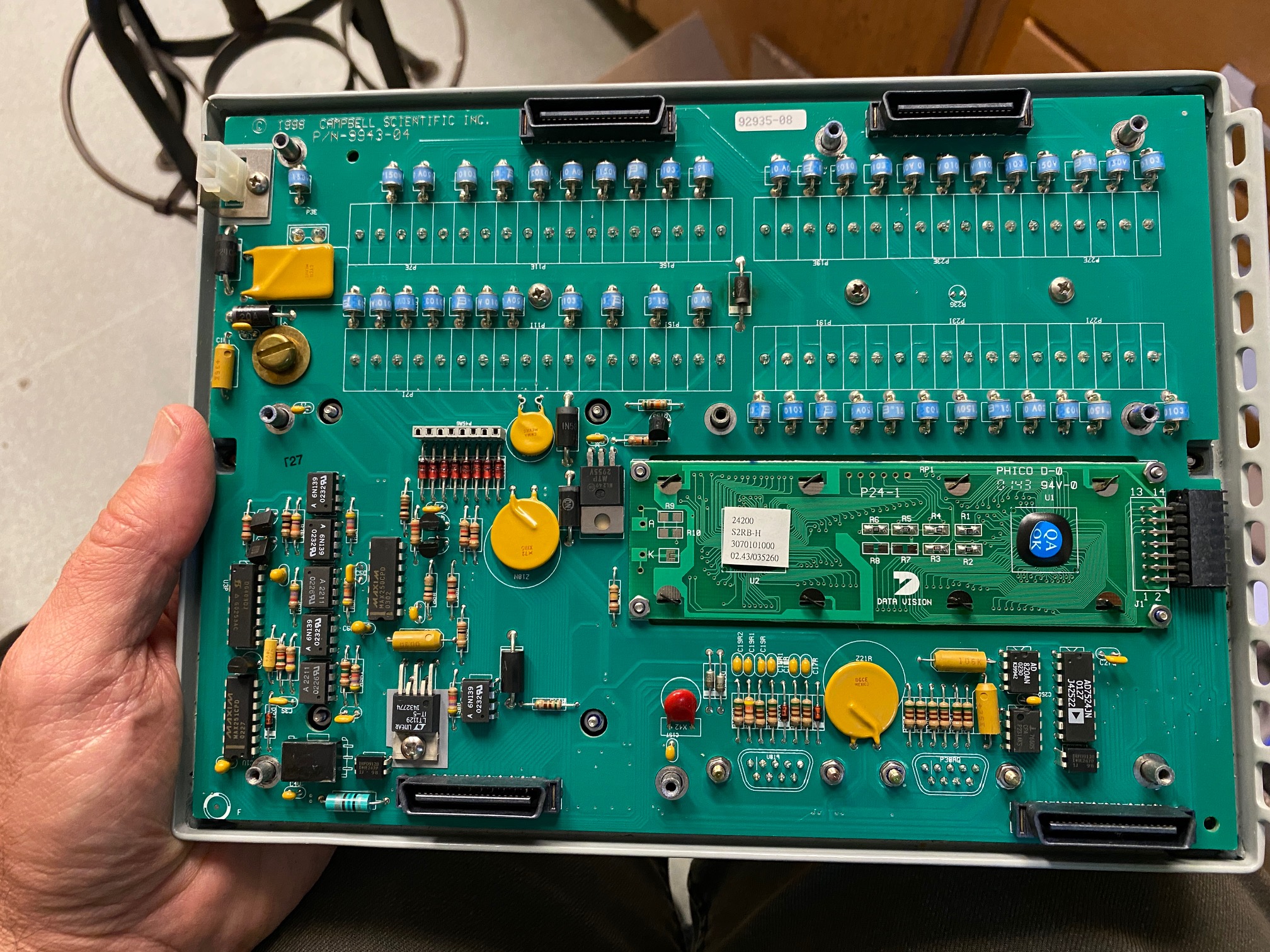

Broken cr23x sn5597 (lower board): photo5

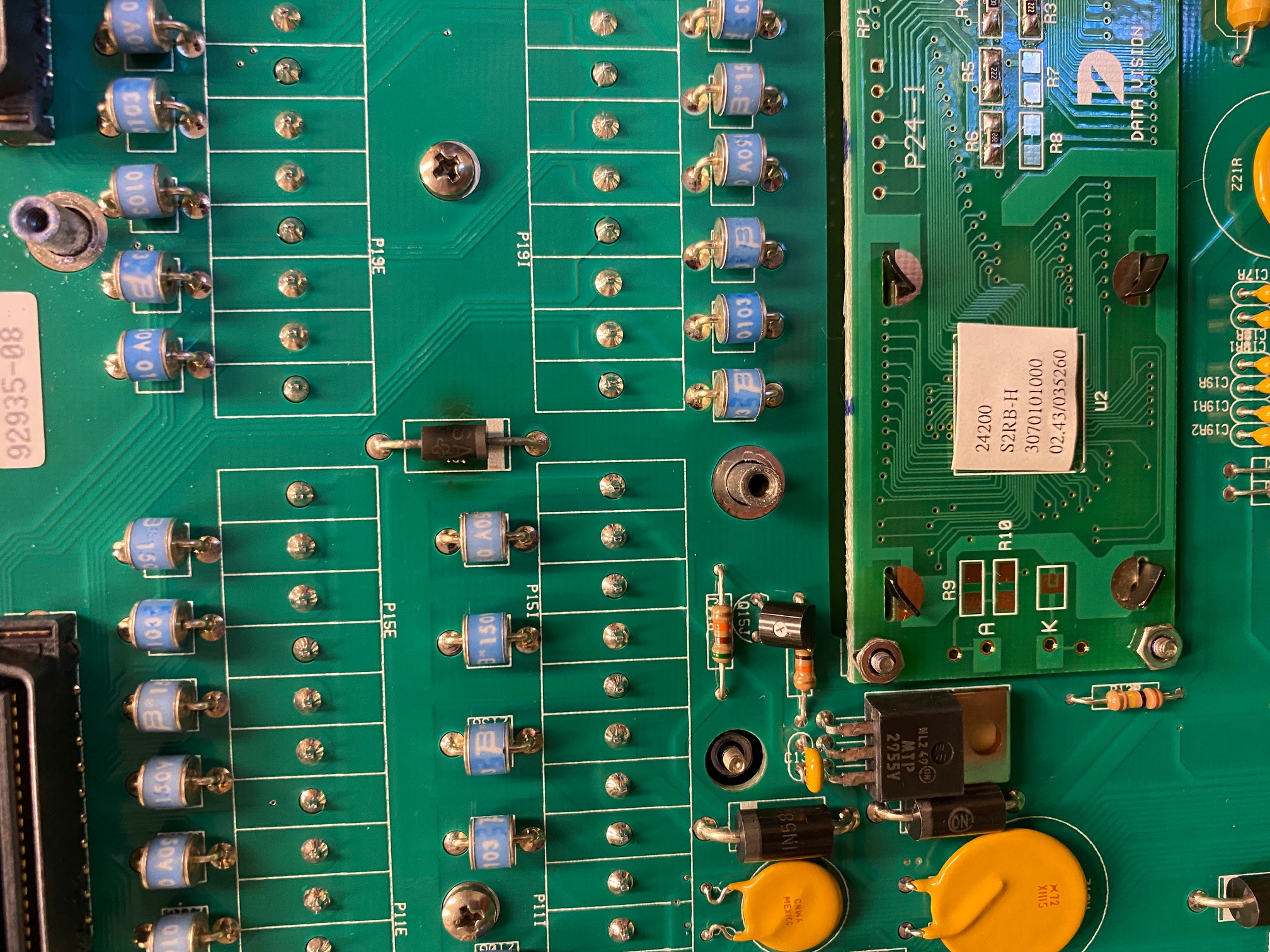

Burned component on cr23x sn5597 board: photo6

cannot log into urquell2 console!

9

JD313
In Lab/Cristol (SpB): Details

at 19:00 MST, on CR23x (sn 0000); changed the Table1 execution interval of lab_25.csi from 1s to 3s

booted the old raspberry pi that was at the site (did not connect to the network); it still works!

Started using ops102; no change at site, only to the titan2 incoming data

10

JD314
In Lab/Cristol (SpB): Details

at 12:30 MST, on cr23xB (sn 2293); changed the Table2 execution interval of lab_26b.csi from 2s to 5s

11

JD315

12

JD316

13

JD317

14

JD318

15

JD319
In Lab/Cristol (SpB): Details

continued testing the two CR23s in the lab with sdi-12

CR23x w/ SN 0000; cr23xA, running lab_26.csi (connected to CNR4 sensor); increased exec interval from 3s to 5s

CR23x w/ SN 2293; cr23xB, running lab_26b.csi (acting as sdi-12 recorder); started using cr23x sn 2291

Photo of cr23xA sn0000 (battery voltage): photo

testing all spare cr23x's in the lab (dropped off sn 5597 in the electronics shop for repair)

16

JD320

17

JD321
In Lab/Cristol (SpB): Details

continued testing the two CR23s in the lab with sdi-12

CR23x w/ SN 0000; cr23xA, replaced internal lithium battery; changed exec interval from 5s back to 3s

CR23x w/ SN 2291; cr23xB, running lab_27b.csi (acting as sdi-12 recorder); added CSAT3 sn 0160 with output to titan2

dropped off cr23x sn 2262 at the electronics shop for (hopeful) repair

Snow

18

JD322

19

JD323
In Lab/Cristol (SpB, BsB): Details

stopped the testing the two CR23s in the lab with sdi-12

shutdown titan2

20

JD324
Site Visit (SpB): Details , Photos (26)

Span cylinder at 1100 psi, N2 at 20 ---> 1750 psi

at XX:XX MST, replaced N2 cylinder cc702638 with cc491784

moved cr23x (sn 0000) and CNR4 stuff to the trailer/tower

at 14:40 MST, cleared snow (and ice) off the forest PolaRx5 GPS "B" antenna

at 15:30 MST, swapped 2.5m csat3 sn0226 with sn0160 (post-visit note: all data now NaN, wrong SDM!)

SpB Prius

Sunny, gusty

21

JD325

22

JD326

23

JD327
SpB Off

24

JD328
CU Holiday (TURKEY DAY)

25

JD329
CU Holiday (day after TURKEY DAY)

26

JD330

27

JD331
In Lab/Cristol (SpB): Details

CR23x w/ SN 2293 (lab_26b.csi) was not collected CSAT3 data (realized due to csat3 set to sdm4!)

Photo of csat3 sn0226: photo

powered up titan2 to collect (1-hz) CSAT3 data

28

JD332
Site Visit (SpB): Details , Photos (32)

Span cylinder at ??? psi, N2 at 1600? psi

at 10:30 MST, downloaded PolaRx5 GPS "A" (sn 3062189) data files

at 11:25 MST, downloaded PolaRx5 GPS "B" (sn 3227662) data files

at 10:50 MST, cleared dry snow (NO ice) off the forest PolaRx5 GPS "B" antenna

swapped SD card from GPSCAM

at 11:50 MST, changed 2.5m csat3 (sn 0160) from SDM3 to SDM4 (now both the 2.5m and 5.7m csat3s are working)

note: the 2.5 LI-7500 is not working (when did this happen?); power-cycle failed to fix

added CNR4 at the top of the tower (on a short boom); using cr23x (sn 0000) with SDI-12 connection to RAD cr23x

Modified niwot.xml, addecd cnr4 input into the DSM (started ops103)

started using rad_09.csi in RAD cr23x logger (which then outputs CNR4 data to isfs/DSM)

Enterprise rental

Overcast, gusty at times

29

JD333

30

JD334

1

JD335

2

JD336

3

JD337
